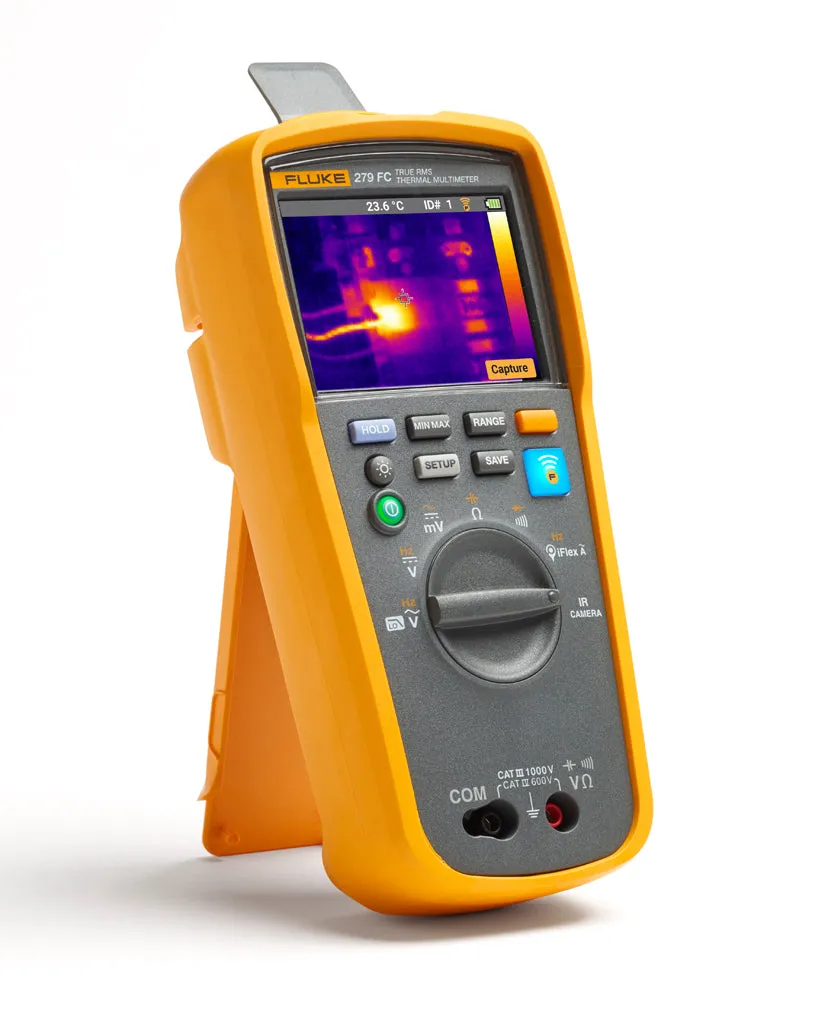

Name: Fluke 279FC/iFlex Wireless True RMS Thermal Multimeter
SKU: 229355

Fluke 279 FC True-rms Thermal Multimeter helps you find, repair, validate, and report many electrical issues quickly so that you are confident problems are solved.

Locate the problem immediately

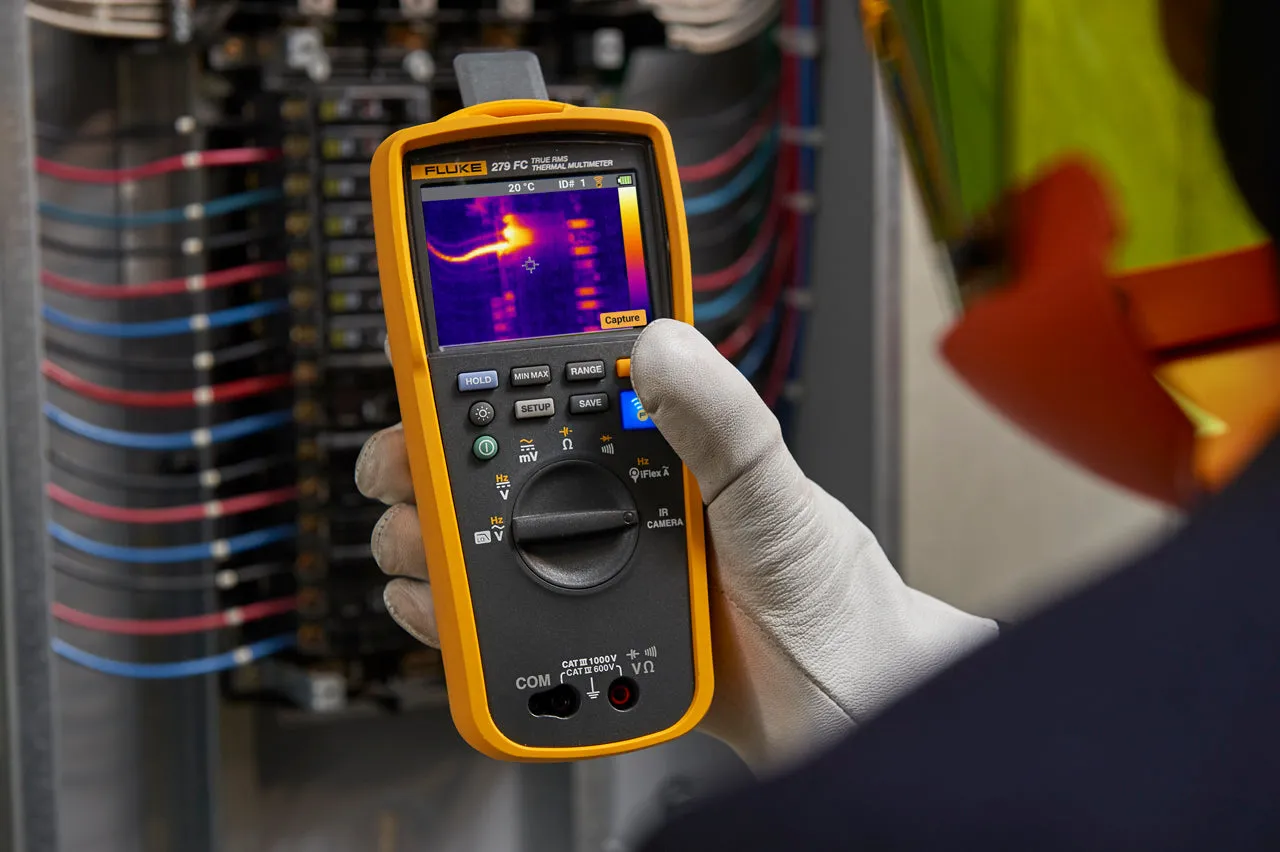

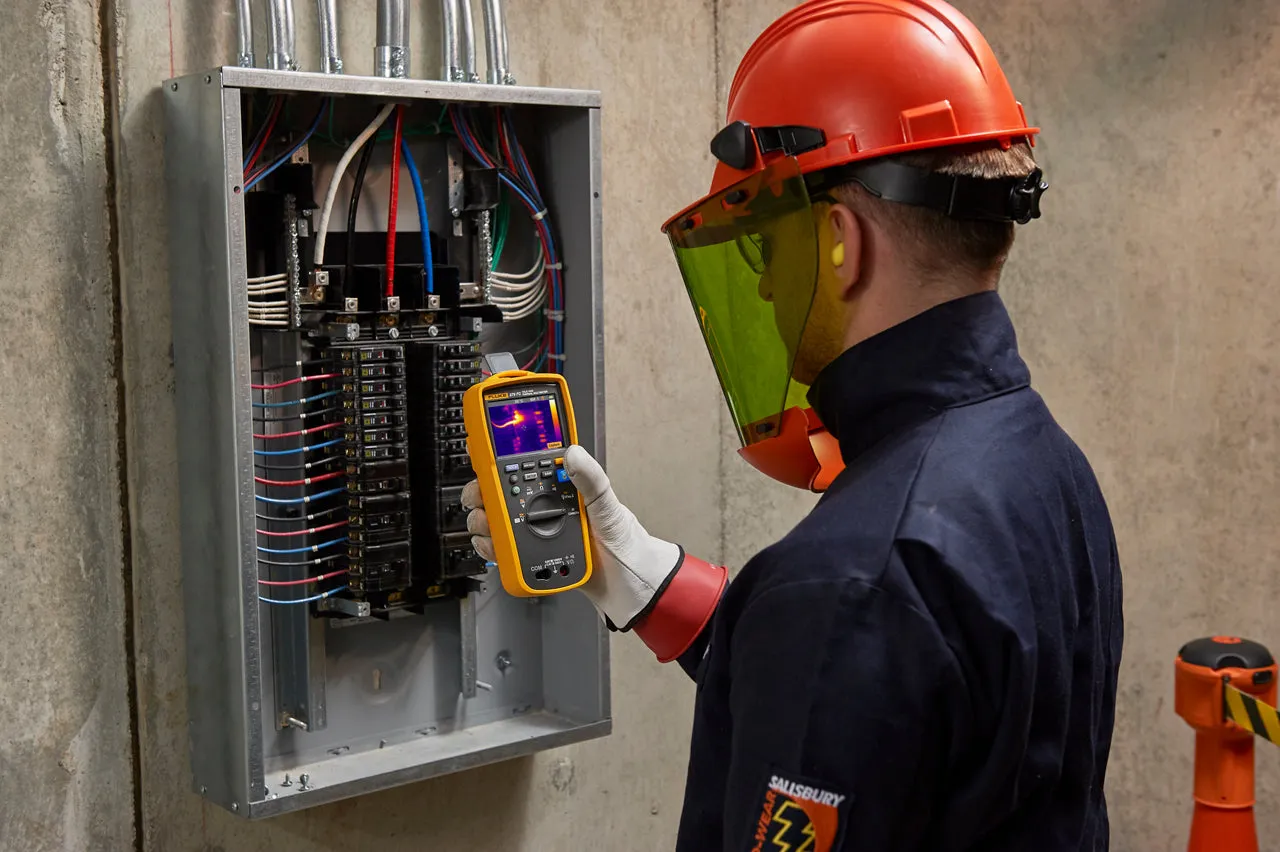

Thermal imaging multimeters are a first-line troubleshooting tool for electrical equipment that can check hot spots on high-voltage equipment and transformers, and detect heating of fuses, wires, insulators, connectors, splices and switches. Scanning with the 279 FC's thermal imager reveals many electrical issues rapidly and from a safe distance. By combining two tools into one, the thermal multimeter lightens the load and increases productivity.

Expanded functionality
Compatible with iFlex® (a flexible current clamp) to expand your measurement capabilities and get into tight, hard to reach spaces for current measurement (up to 2500 A AC). The large full-color LCD screen makes for easier and clearer viewing of images and readings. The 10 hour rechargeable battery keeps you going all day long under normal conditions.

Communicate your results
With built-in Fluke Connect®, transmit results wirelessly to a smartphone and save time on reporting to validate work is complete. Troubleshoot better by instantly trending and monitoring measurements live on your smartphone screen. Create and email reports right from the field.

279 FC TRMS Thermal Multimeter Includes:

279 FC TRMS Thermal Multimeter
(1 pair) TL75 test leads
Rechargeable lithium ion battery and charger
Hanging strap

Fluke Connect is not available in all countries. Please check availability with your authorised Fluke distributor.

All trademarks are the property of their respective owners. Smart phone, wireless service and data plan not included with purchase. First 5 GB of storage is free. Compatible with iPhone 4s and up running iOS 8 or higher, iPad (in an iPhone frame on iPad) and Galaxy S4, Nexus 5, HTC One running Android™ 4.4.x or higher. Apple and the Apple logo are trademarks of Apple Inc. registered in the U.S. and other countries. App Store is a service mark of Apple Inc. Google Play is a trademark of Google Inc.

Features

Full-featured multimeter with built-in thermal imager
15 measurement functions including: AC voltage with low-pass filter, DC voltage, Resistance, Continuity, Capacitance, Diode test, Min/Max/Avg, AC current (with iFlex), Frequency
Thermal imaging reveals many electrical issues quickly and safely, eliminating the need for time-consuming testing and validation
Two-in-one tool is designed to increase productivity – no need to go back to the truck or office to retrieve a shared camera or wait for the thermographer– do more in less time!
iFlex expands your measurement capabilities – get into tight, hard to reach spaces for current measurement (up to 2500 A AC)
Save measurements and images while communicating wirelessly with a smart phone up to 20 feet / 6.1 m away (no obstructions)
Image resolution–80 x 60
3.5 in /8.89 cm color LCD screen
Rechargeable lithium ion battery allows for a for a full work day (10 hours) under normal conditions
Assembled in the USA
Three year standard warranty
Auto power off to save battery power
CAT III 1000 V, CAT IV 600 V measurement category
Optional accessories: Fluke i2500-10 or i2500- 18 iFlex® Flexible Current Probes, Fluke BC500 AC Power charger and Fluke BP500 Lithium-ion Battery 3000 mAh
Designed for durability, built to withstand a 3 m (9.8 ft) drop, double insulated with raised rubber holster for increased protection

Fluke Connect

Fluke Connect connects your meter to your phone through Bluetooth to help you get more done faster and safer

Save measurements and images while communicating wirelessly with a smart phone up to 20 feet / 6.1 m away (no obstructions)
Troubleshoot better by instantly trending and monitoring measurements live on your phone screen
Create and email reports right from the field. Report not enough? Fluke Connect has ShareLive video calls that stream live video and measurements in the same screen

Measurement capability

1000 V ac and dc voltage measurement
Up to 2500 A ac current measurement (with optional iFlex)
Temperature measurement from -10 °C to 200 °C (14 °F to 392 °F)
Resistance measurement to 50 MΩ
Continuity
Diode Test
Min and max recording to capture variations automatically
Frequency
9999 µF capacitance measurement
True-rms voltage and current for accurate measurements on non-linear signals

Other features

CAT IV 600 V , CAT III 1000 V measurement category
Rechargeable lithium ion battery and charger
Three-year warranty
Hanging strap (optional) allows you to conveniently hang the meter while using the probes
Soft carrying case (optional)

Fluke Connect is not available in all countries. Please check availability with your authorized Fluke distributor.

Specifications

DMM
Basic dc accuracy	0.09%
Bandwidth	1% 45 Hz to 65 Hz, full time low pass filter
Voltage	ac/dc 1000 V
Current ac	iFlex Flexible Current Probe (included with the 279 FC/iFlex)
Resistance	50 MΩ
Frequency	100 kHz
Capacitance	9,999 µF
Continuity with beeper	Yes
Diode test	Yes
Min/Max recording	Yes
Display Hold	Yes

Infrared camera
Infrared resolution	80 x 60
Image capture frequency	8 Hz
Field of View	36° (w) x 27° (h)
NETD	≤200 mK
Infrared spectral band	7.5 to 14 microns
Center point	Yes (with center point temp)
Focus mechanism	Fixed focus
Temperature Range (selectable °C and °F)	-10 °C to 200 °C (14 °F to 392 °F) Accuracy: ±5 °C (41 °F) or (±5% as tested)
Emissivity	0.95 fixed
Background compensation	20 °C fixed
Memory storage	Approximately 100 images (internal)
File format	Non-radiometric .is2

General specifications
Battery type	Rechargeable lithium ion battery (charge time: 4.5 hours)
Operating temperature	-10 °C to 50 °C (14 °F to 122 °F)
Storage temperature	-20 ºC to 60 ºC (-4 °F to 140 °F)
Relative humidity	0% to 90% (0 °C to 35 °C) (32 °F to 95 °F) 0% to 75% (35 °C to 40 °C) (95 °F to 104 °F) 0% to 45% (40 °C to 50 °C) (104 °F to 122 °F)
Altitude	2,000 meters (6,561 feet)
Temperature coefficient	Add 0.1 x specified accuracy for each °C above 28 °C or below 18 °C (°F above 82 °F or below 64° F)
Ingress Protection	(IP) IP40 (non-operating)
Wireless frequency	2.4 GHz ISM Band, 20 meter range
Certifications	CE, CSA, FCC
Safety compliance	IEC 61010-1: Pollution degree 2; IEC 61010-2-033: CAT III 1000 V/CAT IV 600 V
EMC	EN 61326-1:2012
Size	215.9 x 93.9 x 57.1 mm (8.5 x 3.7 x 2.25 in)
Weight	0.793 kg (1.75 lb)
Warranty	Limited three-year warranty
