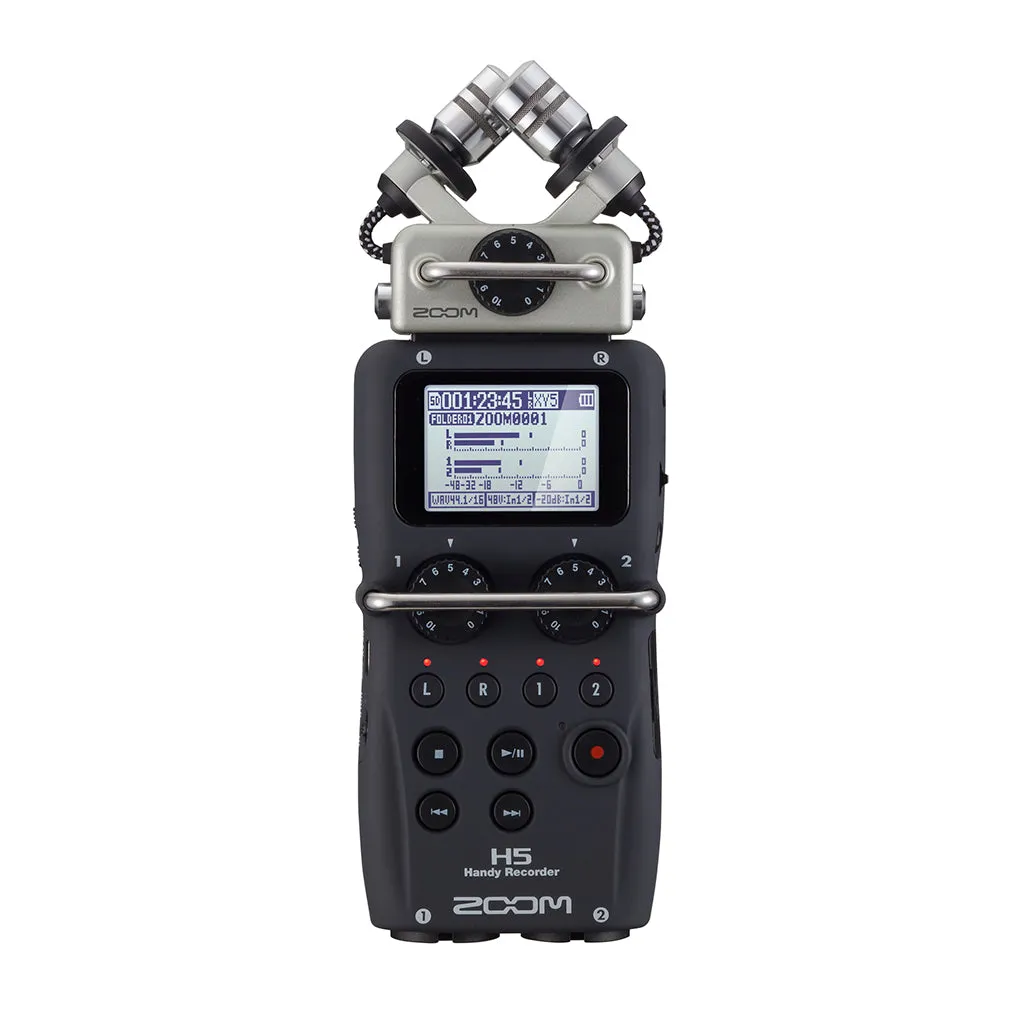

Four tracks of simultaneous recording and interchangeable mic capsules make the H5 flexible and powerful enough to meet the evolving needs of today’s creators.

The design of the XYH-5 mic capsule allows the H5 to handle up to 140 dB SPL — equivalent to the sound of a jet aircraft from less than 200 feet away! And to keep your levels under control, the H5 offers compression and limiting.

The H5’s rubberized housing and shock-mounted microphones minimize vibration and handling noise, while a low-cut filter helps eliminate wind noise and other kinds of low frequency rumble.

The H5 utilizes the same high-quality, low-noise preamps as our flagship H6, ensuring great-sounding recordings in all sonic environments.

Features

• A versatile 4-in/2-out mobile recording system
• 2 XLR/TRS combination inputs with microphone preamps and phantom power ( 12/ 24/ 48V) accommodate most analog connections
• Modular input connection lets you attach onboard microphones and additional input jacks
• Gain knobs for each input make setting levels fast and easy
• Shockmounted XYH-5 XY stereo microphone module included
• Captures audio at up to 24-bit/96kHz professional-grade resolution
• Doubles as a handy USB recording interface with your Mac, Windows PC, or iPad (via Apple Camera Connection Kit)
• Large LCD display makes navigation and setup extremely easy
• Built-in processing includes highpass filtering, compression, limiting, and M-S stereo width decoding
• Loop playback, variable playback speed (from 50% to 150%), and variable pitch per track make this an excellent practice tool
• Chromatic tuner and metronome built in for added convenience
• Records onto SD and SDHC storage media with up to 32GB capacity
• Record for up to 15 hours on just 2 AA batteries
• Includes operation manual, 2 AA batteries, USB cable, foam windscreen, Wavelab LE software, and carrying case
• Optional shotgun mic, input expansion module, and hot shoe mount accessory also available

Specs

• Audio Interface: Yes (via USB)

• A/D Resolution: 16-bit/44.1 kHz, 24-bit/96kHz

• Simultaneous Rec Tracks: 4

• Simultaneous Play Tracks: 4

• Built-in Mic(s): XYH-5 X/Y mic

• Analog Inputs: 2 x XLR-1/4 combo, 1 x 1/8

• Analog Outputs: 1 x 1/8

• Headphones: 1 x 1/8

• Built-in Speaker: Yes

• Memory (removable): SD/SDHC Card Slot (up to 32GB)

• Effects: Compression, Limiting, Low-cut filter, Metronome, Tuner, Playback
• Looping, Pitch Change, Variable Playback Speed

• USB: Yes

• Power Supply: AA battery, AC, USB bus power

• Battery Life: Over 15 hours

• Stand Mountable: Yes (Mountable to DSLR or camcorder with optional HS-01
• Hot Shoe Mount adapter)

• Height: 1.66

• Width: 5.21

• Depth: 7.77

• Weight: 0.59 lbs.
